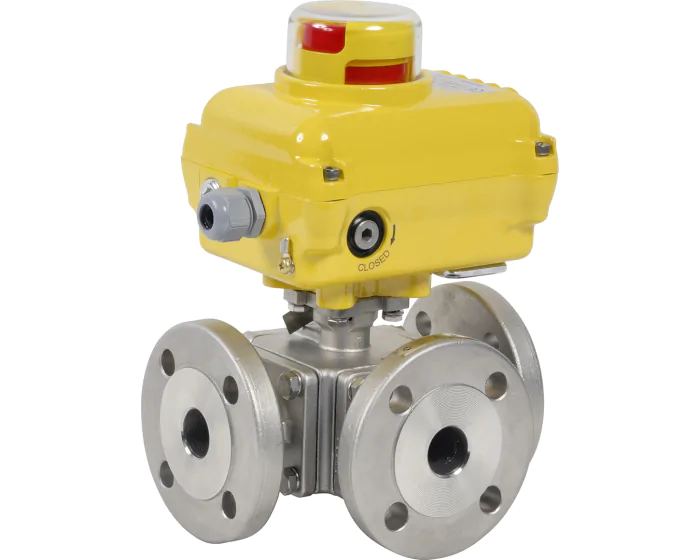

The 785 L or 786 T 3-way ball valve has a stainless steel 1.4408 body and ball and PTFE seats. It is actuated with an SA/NA electric actuator. PS: 16 bar, TS: 150°C. Flanged attachments PN16 RF
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By handwheel |
| Declutchable | Yes |
| DN | DN150 - 6'' |
| Duty service | S2 duty service - 70% |
| Protection index (IP) | IP 67 |
| Torque limiter | Yes |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| Number of ways | 3 |
| Bore | Full |
| Packing gland | PTFE |
| PS (bar) | 16 |
| Power (W) | 90 |
| Connections | Flanged PN16 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | NA 60 |
| Electric actuator series | SA/NA series |
| Seats | PTFE-Glass |
| Operating time (s) | 29.0 |
| Voltage | 230 V AC |
| TS max (°C) | 150 |
| TS min (°C) | -30 |
| 3-way type | T-port |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | Industry |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Flanged PN16 Stainless steel CF8M (1.4408) Full 25 | 275374023010 | S1003862 |
€929.24
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 32 | 275375023010 | S1003863 |
€1,030.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 32 | 275375023011 | S1003864 |
€1,030.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 40 | 275376023110 | S1003866 |
€1,757.21
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 50 | 275377023120 | S1003868 |
€2,066.87
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 65 | 275378023130 | S1003869 |
€2,748.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 80 | 275379023150 | S1003870 |
€3,450.13
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 100 | 275380023150 | S1003871 |
€6,086.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 125 | 275381023180 | S1003872 |
€7,894.49
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 150 | 275382023180 | S1003873 |
€10,689.60
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 25 | 275384023010 | S1003874 |
€929.24
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 32 | 275385023010 | S1003875 |
€1,030.20
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 32 | 275385023011 | S1003876 |
€1,071.00
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 40 | 275386023110 | S1003878 |
€1,757.21
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 50 | 275387023120 | S1003880 |
€2,066.87
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 65 | 275388023130 | S1003881 |
€2,748.31
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 80 | 275389023150 | S1003882 |
€3,450.13
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 100 | 275390023150 | S1003883 |
€6,086.06
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 125 | 275391023180 | S1003884 |
€7,894.49
(excl. btw)
|
add to cart |
| Flanged PN16 Stainless steel CF8M (1.4408) Full 150 | 275392023180 | S1003885 |
€10,689.60
(excl. btw)
|
add to cart |
